ALGORITHMIC MODELING
The reconstruction of the rinomate orhanic building through the use of BIM and parametric modeling.
L’obiettivo del laboratorio di modellazione parametrica è stato quello di affinare le conoscenze relative a software di progettazione che appartenessero al ramo del BIM, ponendo particolare attenzione ai concetti di gerarchia degli elementi propri degli applicativi utilizzati, quali categorie, famiglie, tipi e istanze.
L’obiettivo del laboratorio di modellazione parametrica è stato quello di affinare le conoscenze relative a software di progettazione che appartenessero al ramo del BIM, ponendo particolare attenzione ai concetti di gerarchia degli elementi propri degli applicativi utilizzati, quali categorie, famiglie, tipi e istanze.

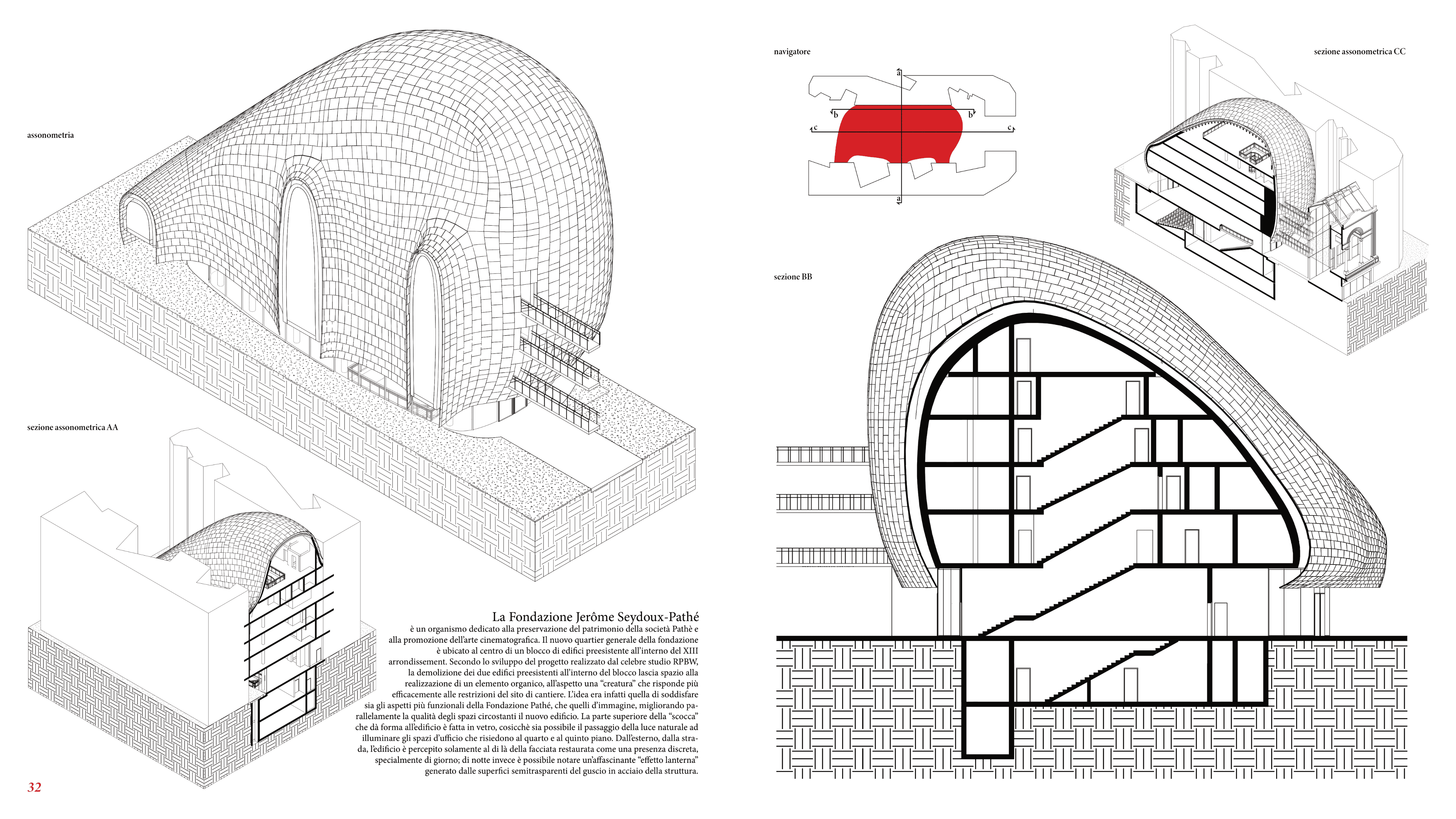

Il caso studio scelto è la Jerôme Seydoux-Pathé Foundation, realizzata dallo studio RPBW. Si tratta di uno spiccato esempio di architettura organica, che dimostra il sapiente utilizzo della tecnologia strutturale contemporanea e dei materiali. Attraverso i disegni tecnici del progetto, è stato possibile ricreare l’intera architettura grazie ai software di modellazione parametrica Revit, Rhinoceros e del plugin Grasshopper.
Il caso studio scelto è la Jerôme Seydoux-Pathé Foundation, realizzata dallo studio RPBW. Si tratta di uno spiccato esempio di architettura organica, che dimostra il sapiente utilizzo della tecnologia strutturale contemporanea e dei materiali. Attraverso i disegni tecnici del progetto, è stato possibile ricreare l’intera architettura grazie ai software di modellazione parametrica Revit, Rhinoceros e del plugin Grasshopper.

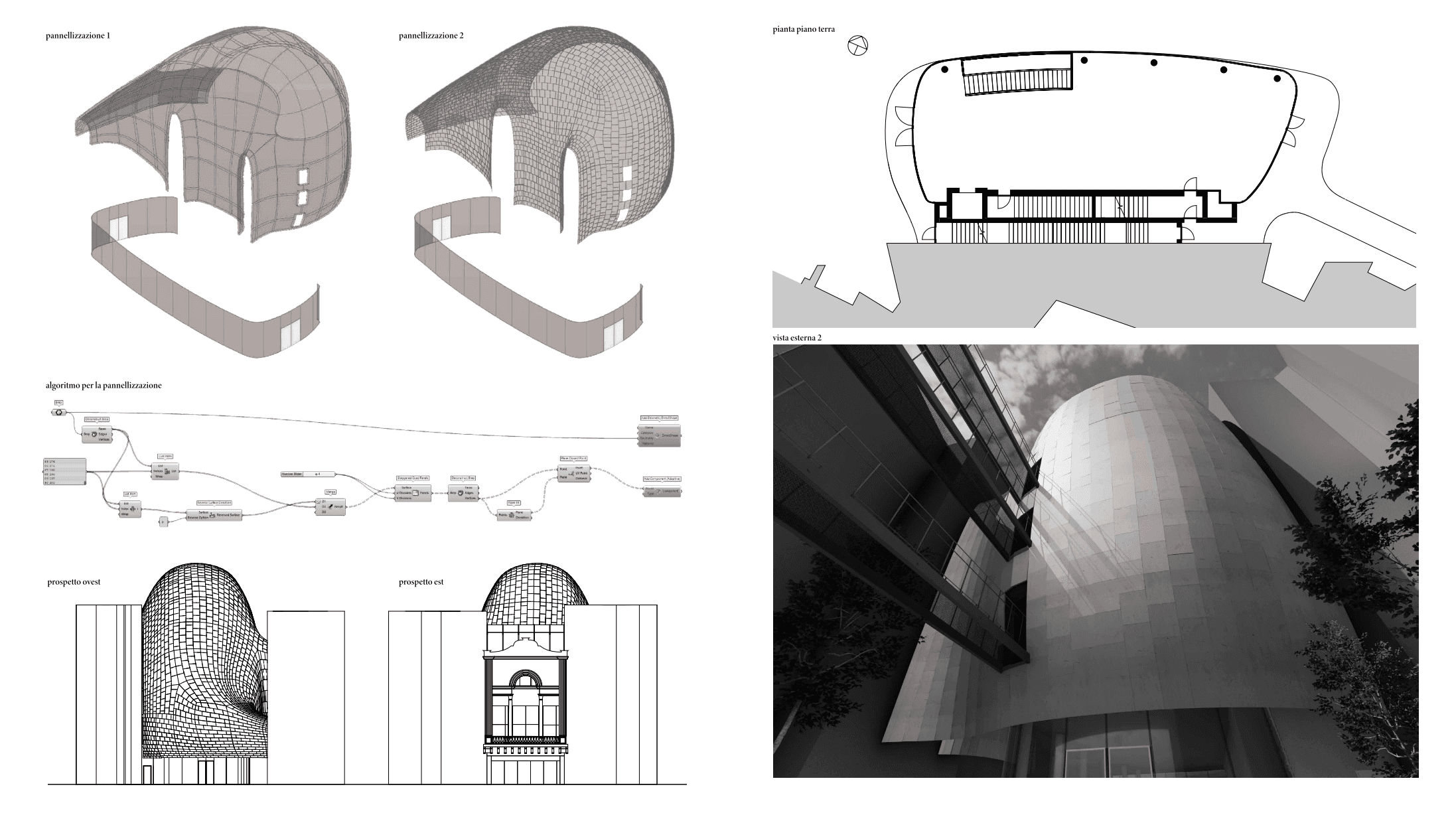

Con l’utilizzo delle subdivision surfaces è stato possibiile dare forma all’involucro organico che, in seguito all’elaborazione tramite un algoritmo realizzato ad-hoc, ha funto da base per la pannellizzazione esterna dell’intero volume.
Con l’utilizzo delle subdivision surfaces è stato possibiile dare forma all’involucro organico che, in seguito all’elaborazione tramite un algoritmo realizzato ad-hoc, ha funto da base per la pannellizzazione esterna dell’intero volume.
